Optima 36 Single Glazing / Double Glazing

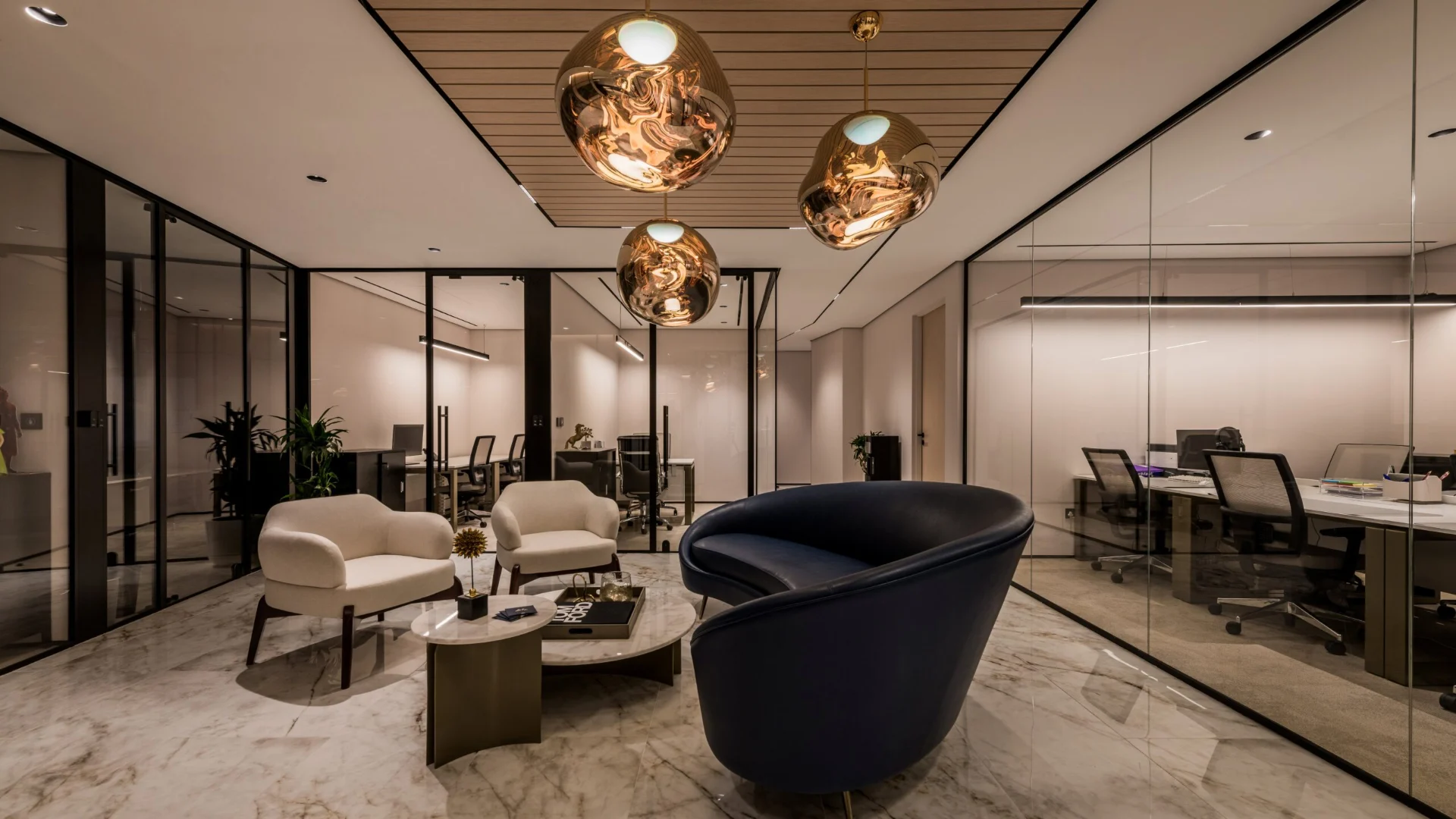

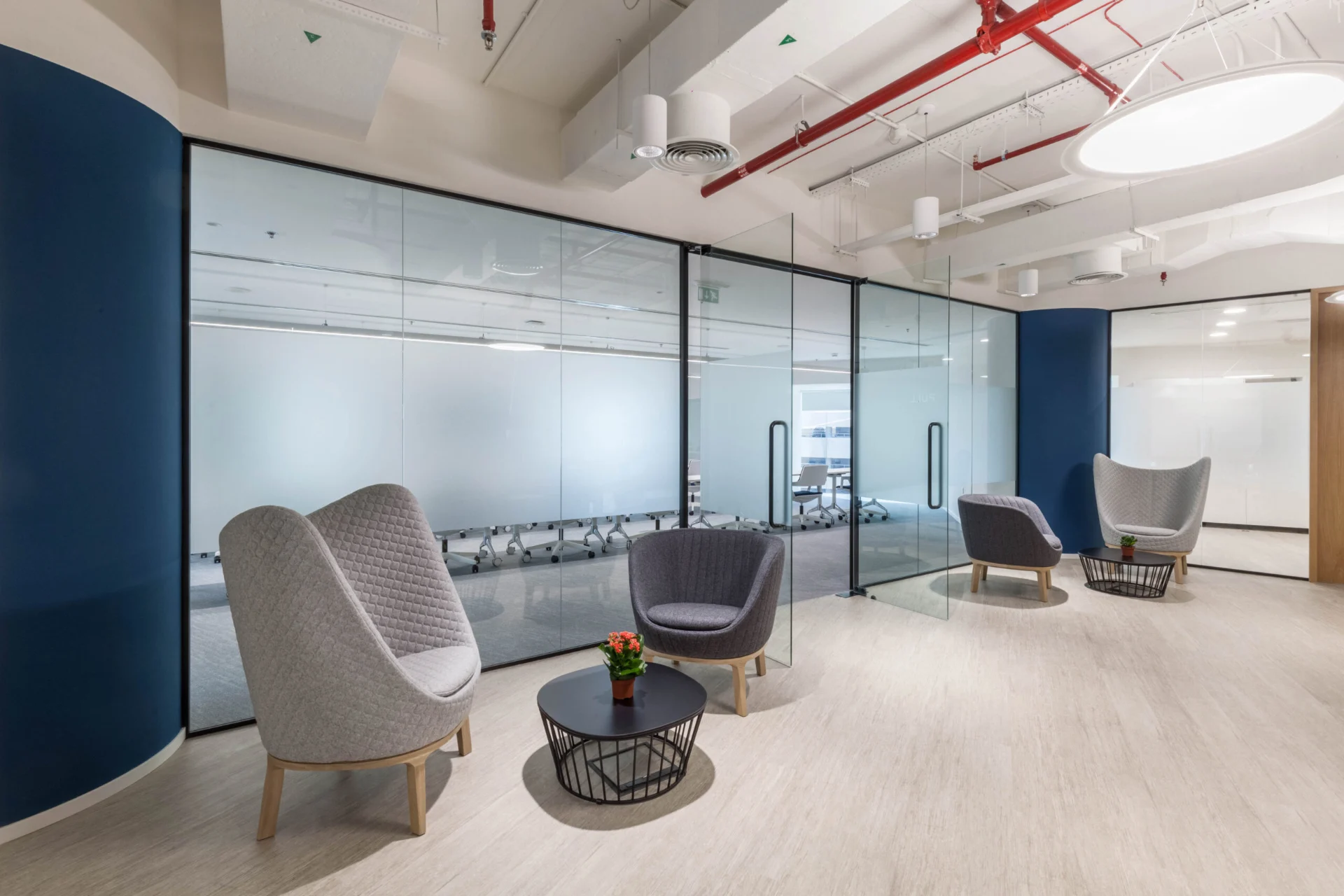

Optima 36 is a timelessly elegant single glazed partition system which can be used to make beautiful private rooms out of open spaces. Minimal head and base channels and discreet glass to glass dry joints create the illusion of vast areas of unsupported glass.
A double glazed adaption of the popular Optima 36 partition, allowing for higher acoustic needs without compromising on style. For offices with varying acoustic requirements, Optima 36 in its double glazed form integrates seamlessly with the single glazed version.
Head Condition
A simple 25mm extruded aluminium head channel is all that is required.
Base Condition
To maintain a consistent appearance, as with the head condition, the base and abutments comprise a simple 25mm deep extruded aluminium channel.
Panel Dimensions
Optima 36 can accommodate glass panels up to 1500mm wide, subject to height, configuration, and site logistics.
Interpanel Joints
The use of dry-glazing in the Optima 36 system makes it quick and easy to install, without compromising on durability, aesthetics or acoustic performance. Discrete Ghost dry joints ensure a seamless appearance.
Acoustics
Optima 36 can accommodate a variety of glass thicknesses to suit the acoustic rating that you need to achieve. As with all of our products, the system is laboratory tested for acoustic performance in a UKAS accredited laboratory and full test reports are available upon request.
Optima 36 can achieve Rw33dB with 12mm toughened glass and Rw38dB with 12.8mm thick acoustic laminated glass.
Optima 36 can achieve Rw37dB with 2 layers if 10mm toughened glass and Rw43dB with 2 layers of 13.14mm thick acoustic laminated glass.
The acoustic test is conducted on a full height, multi-module screen with glazing joints and perimeter track-work; not simply a ‘window’ in a smaller sized opening. Testing samples using the latter method will generally give an artificially higher acoustic rating result and any results obtained in this way should be treated with great caution.

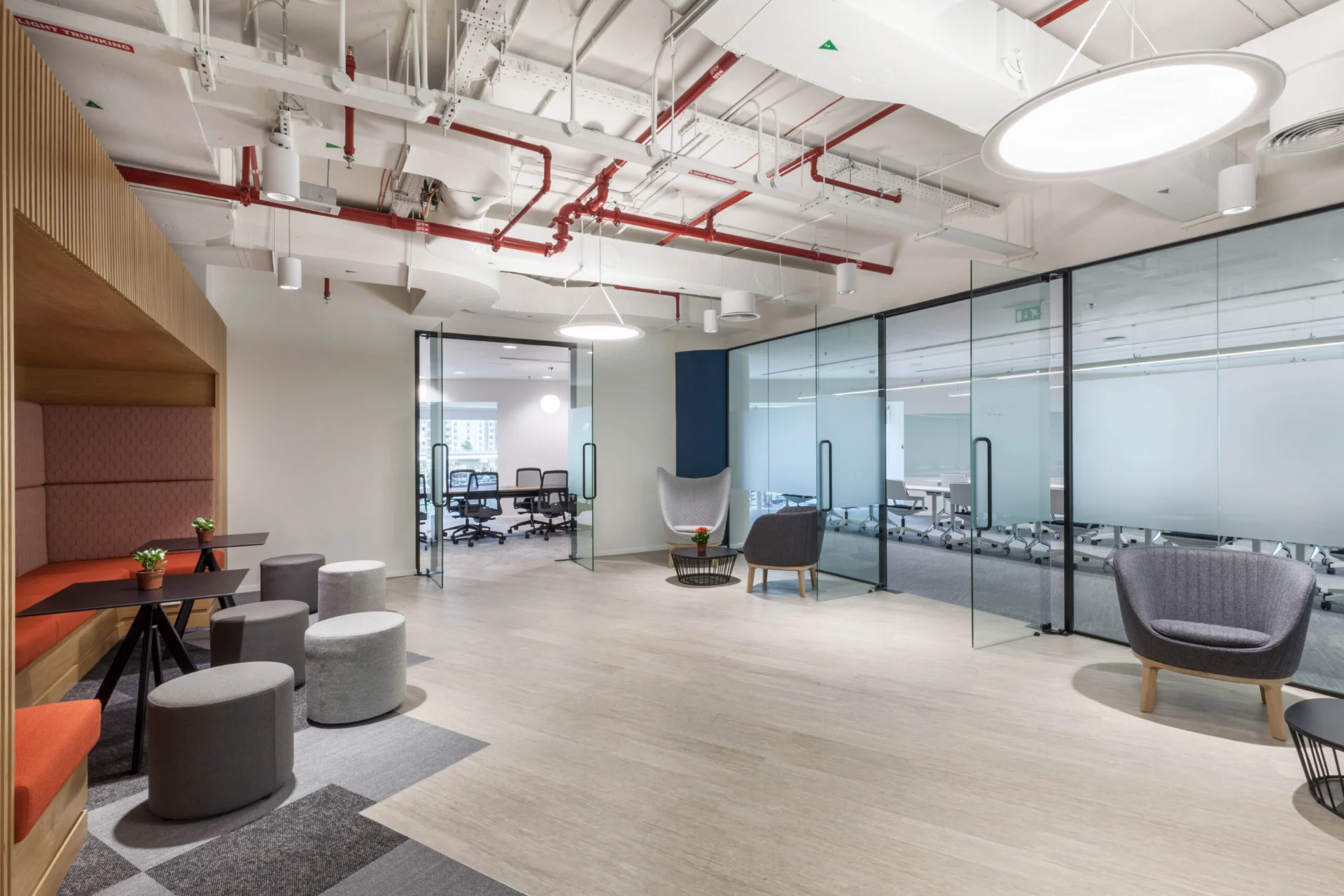

Doors
The Optima 36 system has a stylish integral door frame and a unique flush single glazed door to complement the partition aesthetic. Including the Optima 36 door available with a concealed door closer. This can be customised to fit your needs whether acoustic or suited to visual privacy.
